Exclusively designed HMI for QZYK-C Series

12 inch screen with friendly touch experience

Variety of advanced functions and options

Feature Technologies

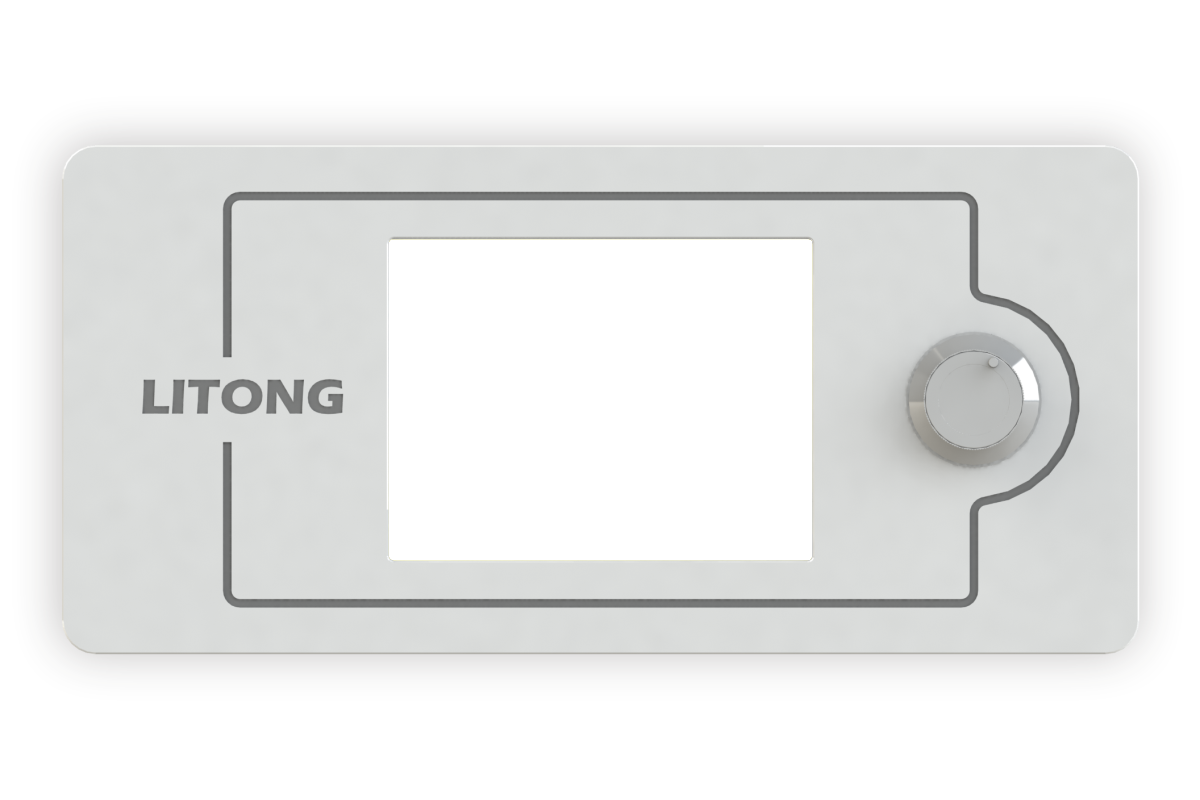

12 Inch Touch Screen

User friendly operation experience

Industrial Touch Panel

Professional and fast touch experience

Intuitive Graphic User Interface

Designed for fast learn and easy use

Dual-unit System

Built-in mm and inch unit system

Multi-language User Interface

Support up to 6 languages user interface

Built-in Realtime Help Page

Check help information in any page any time

Remote Service System

Internet based system service and update

Dynamic self-diagnosis function

Easy to track and diagnose system problem

0.1mm Display Precision

With LITONG Servo positioning system

Backgauging Animation

Display the realtime position of backgauge

Advanced Programming Function

Easy programming with lots of useful functions

Large Program Date Storage

100 data groups with 10,000 lines program

Date Transfer Function

Download or upload data by USB device

Cutting Cycles Record

Record total and per knife cutting cycles

 Built-in Calculator

For programming and mathematic calculation

Pop Up Safety Warnings

Display safety warnings by pop up windows

Password Lock Function

Require password to login or do modification

Auto Clamping Function*

Automatically continuous clamping

Auto Cutting Function*

Automatically continuous cutting

Soft Clamping Function*

Specially for sensitive material cutting

Clamping Height Control Function*

Adjustable clamp height to improve efficiency

* Optional configuration or function

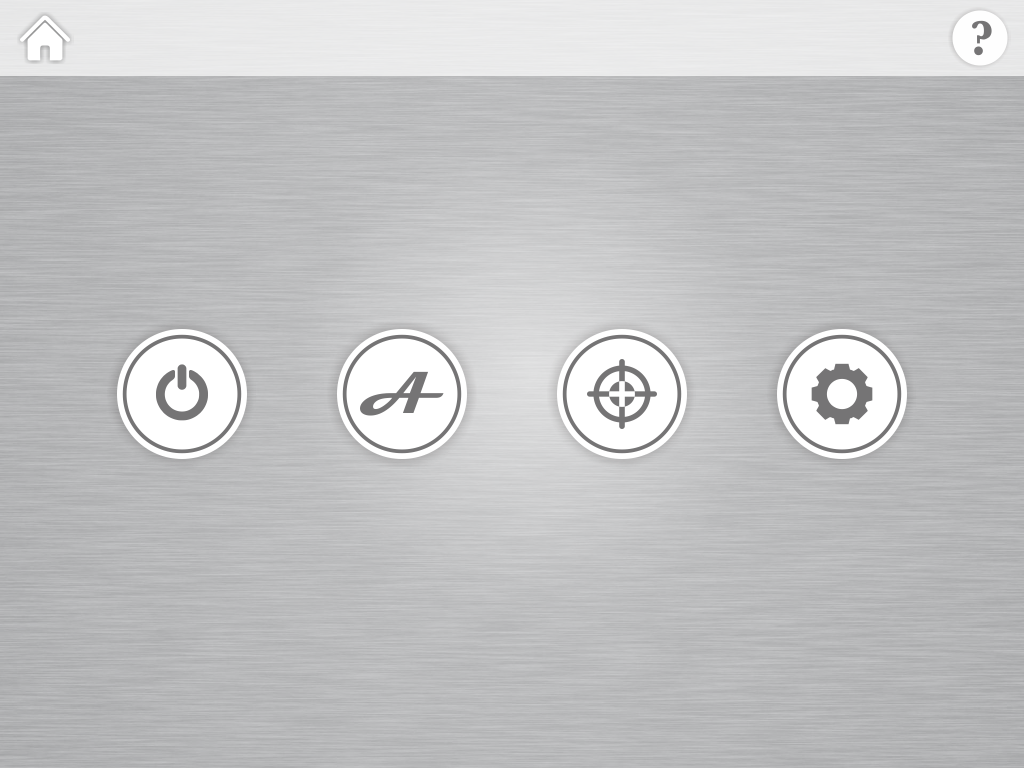

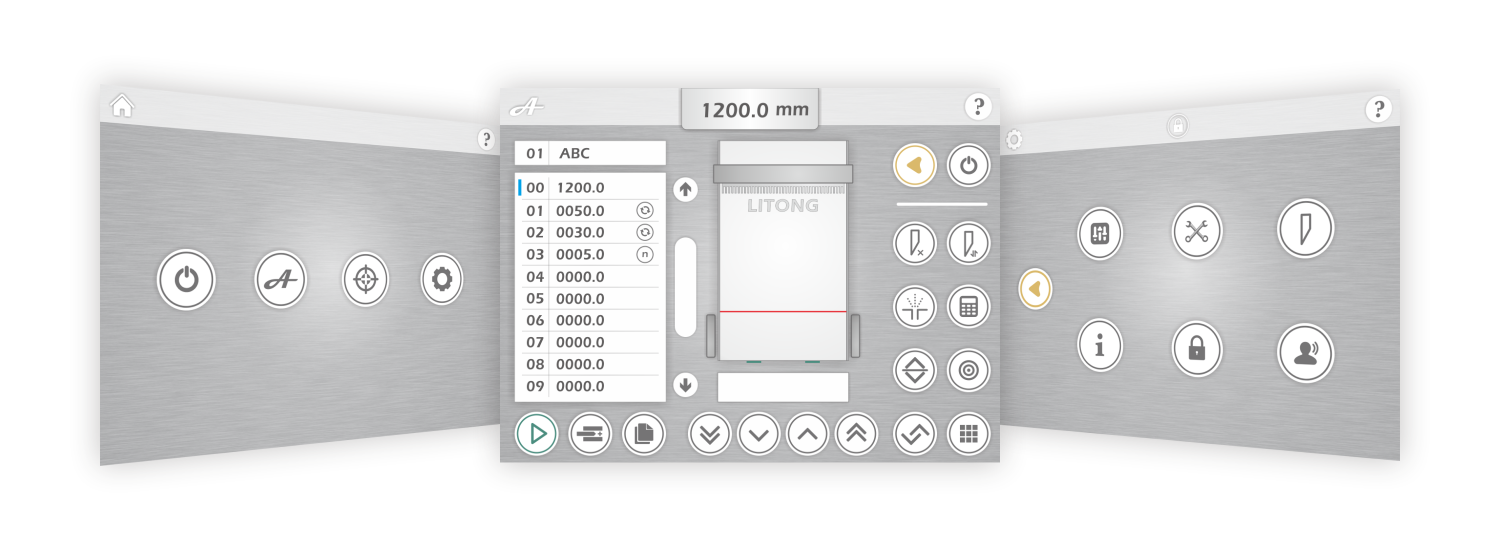

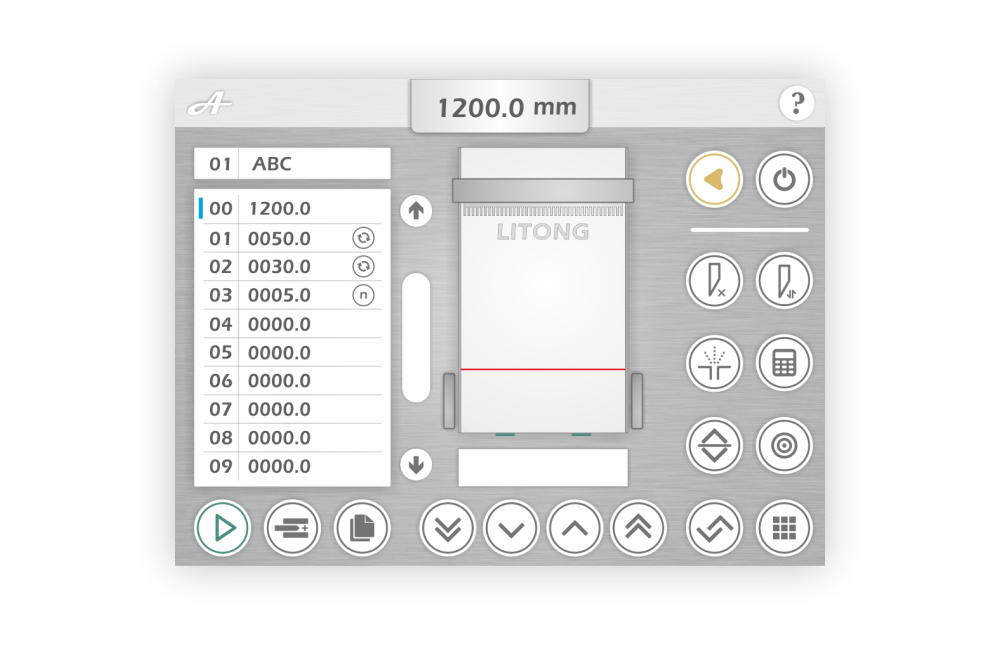

Intuitive Graphic User Interface

Designed for fast learn and easy use

Training or special operation skill are not required

Built-in one-click help information for quick instruction

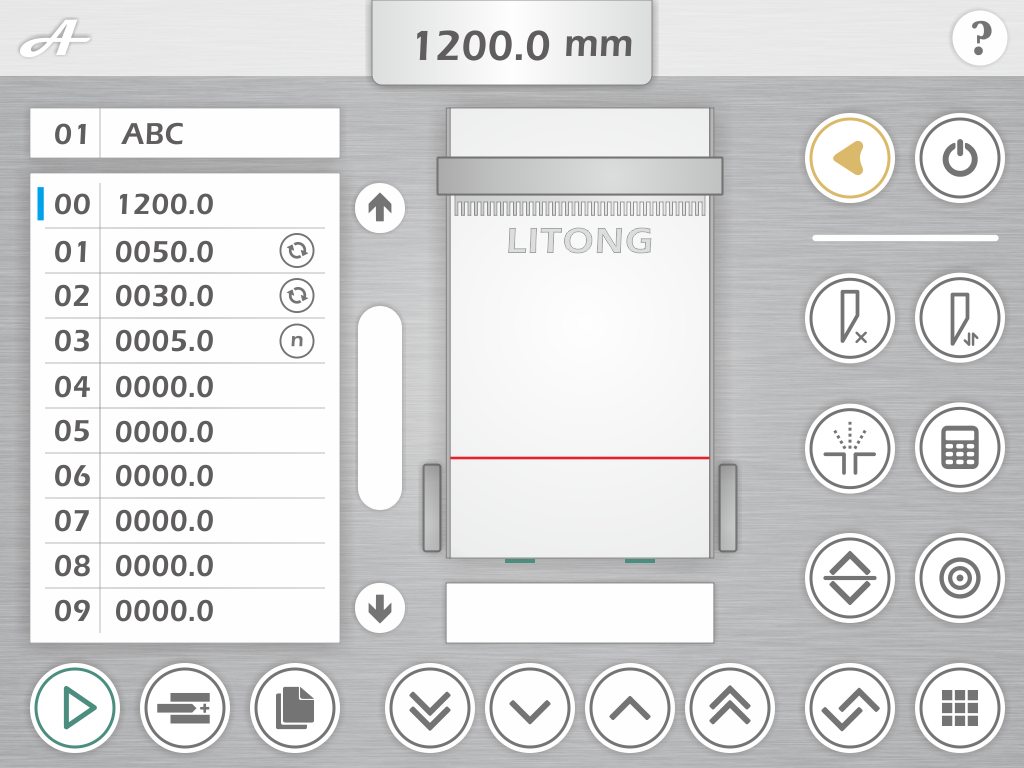

Variety of control modes and functions

Backgauging animation

Clamp lock and knife lock functions

Relative position and absolute position backgauging

Two speed forward and backward manual backgauging buttons

Automatic paper sending function, air cushion control, built-in calculator

Program realtime display, program option indication area, copy and insert functions

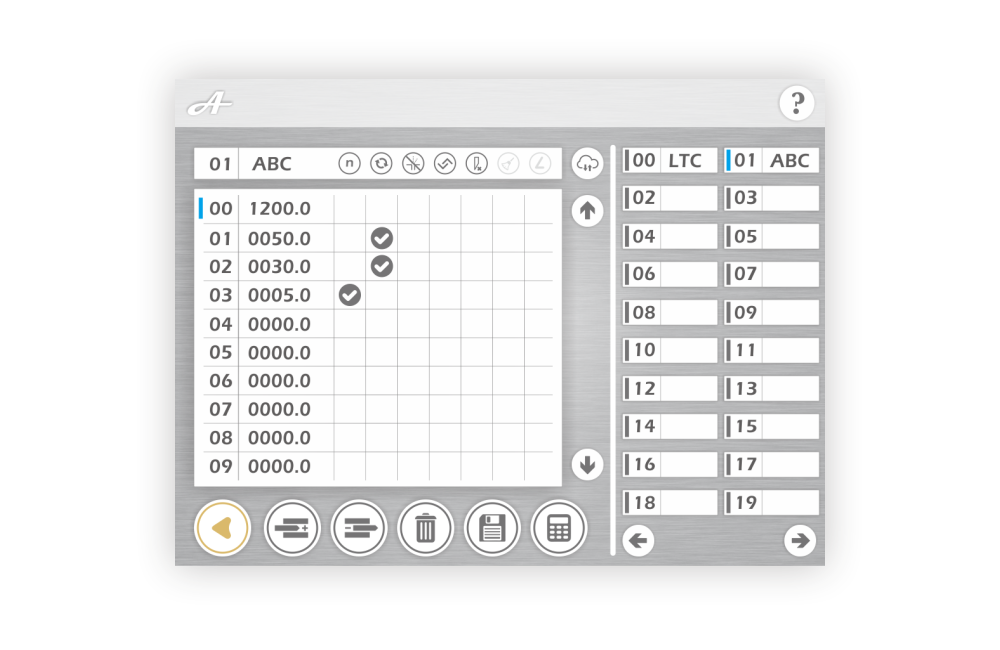

Advanced Programming Functions

100 data groups with 10,000 lines program

Absolute position cut and relative position cycle cut program

Air cushion off, automatic paper sending, knife lock, and other functions

Program line display, line delete, line insert functions and group delete function

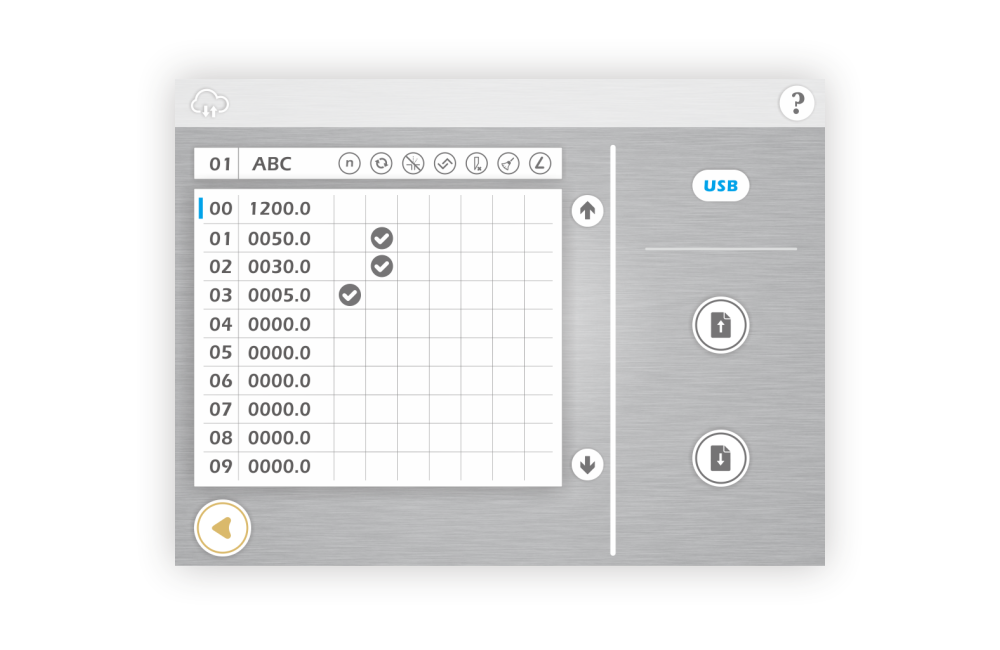

Data Transfer Function

Upload or download program data to USB storage device

Easy backup data or transfer program from machine to machine

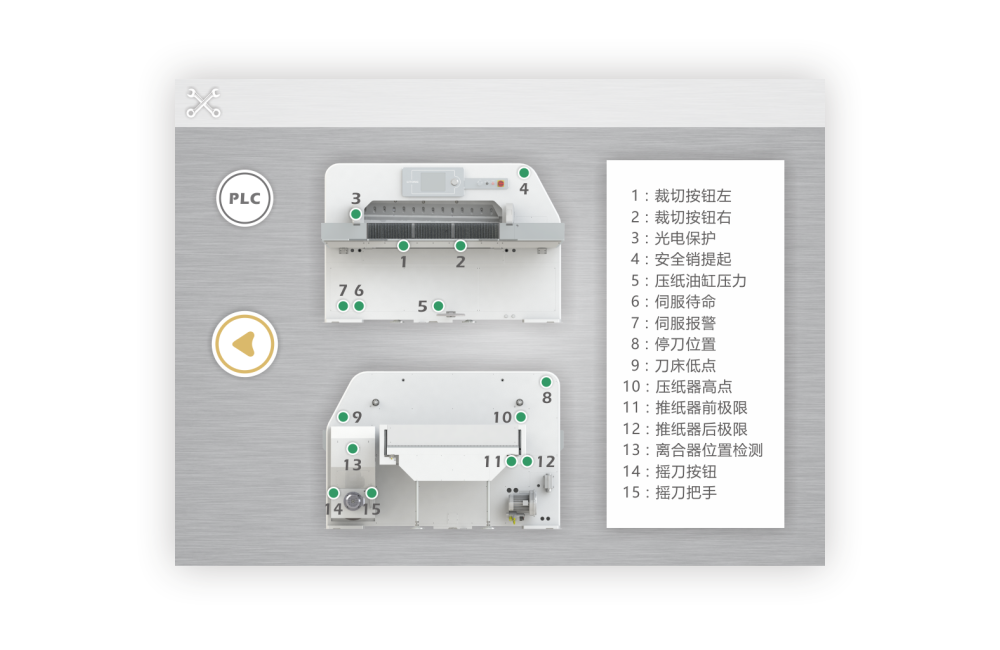

Dynamic Self-diagnosis Function

Realtime tracking system working condition

Check system sensor signals and diagnose system problem

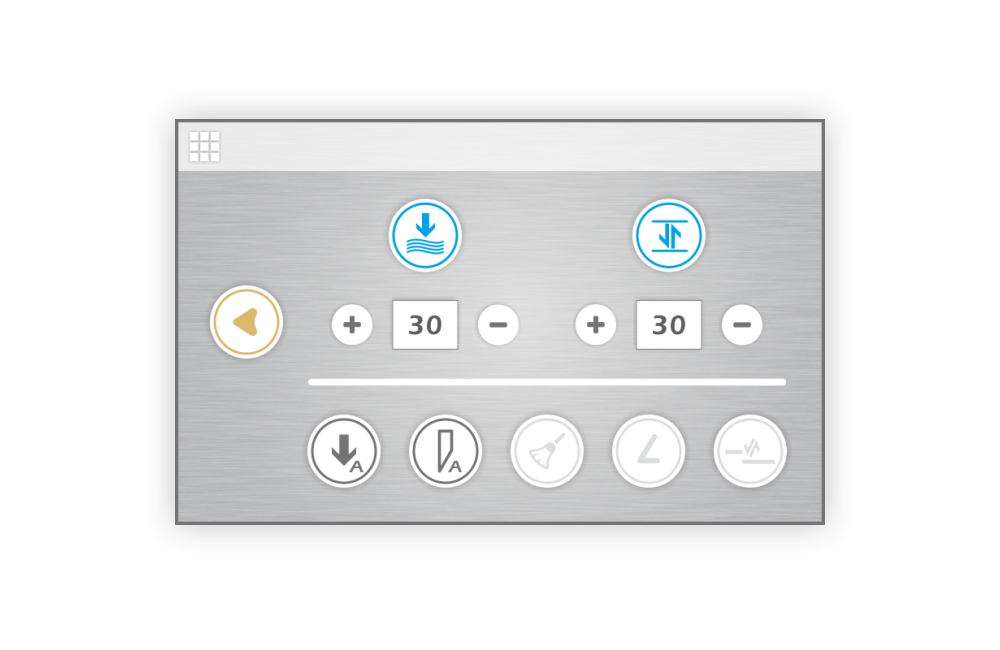

More Optional Functions*

Soft clamping and clamp height control

Automatic clamping and automatic cutting functions

*Optional functions and configurations

Dual-unit Operation System

Built-in both “mm” and  “inch” unit system

Support worldwide cutting commission and realtime unit system switch

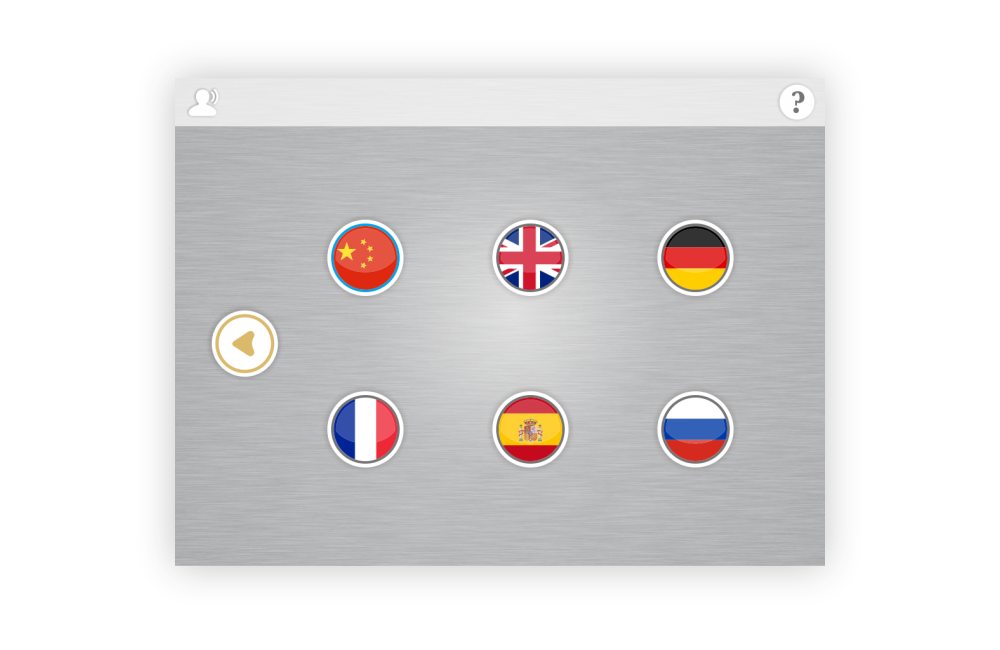

Multi-language User Interface

6 languages user interface

Other languages are customizable
