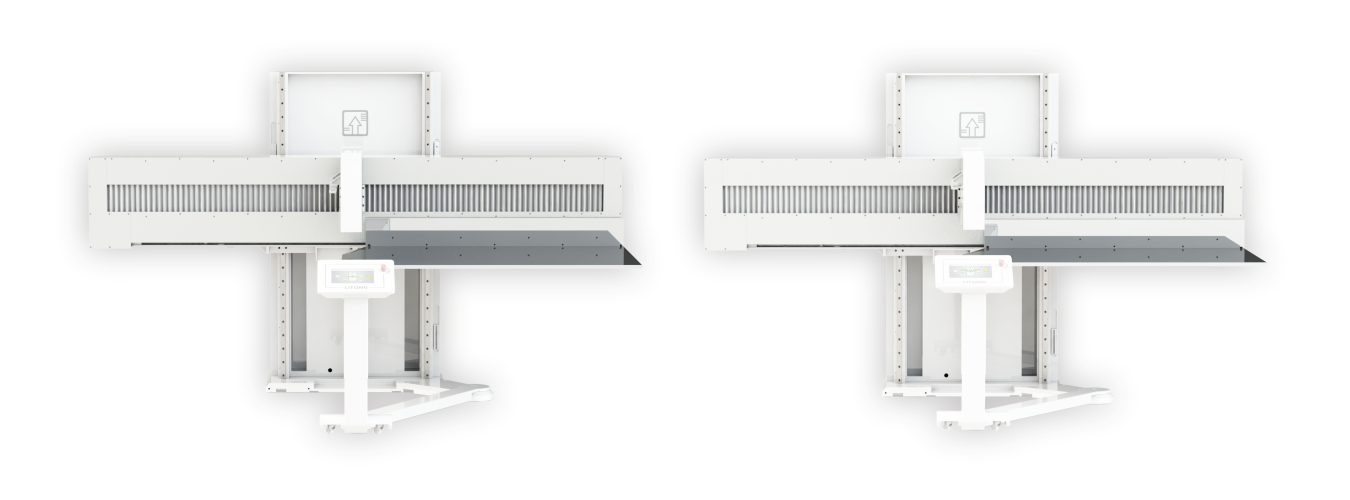

2 models: QZ-A, QZ-I

3 sizes: 950, 1050, 1250

Variety of options for customization

Feature Technologies

Bionic Loading Technology

Mimic human hand paper loading process

10 Inch Touch Screen

Professional  industrial touch panel

Smart-Touch HMI

Exclusive pile unloader operation system

Multi-language User Interface

Support up to 6 languages user interface

Digital Driving System

LITONG customized digital driving system

20m/min High Speed Loading

Responsive and fast loading speed

Plow Type Loading Table

Minimize paper damage with micro rolling rods

Thin Paper Separation System*

Damage-free paper separation before loading

Ready for Last Stack Loading*

Automatically recognize and load last stack

One-click Loading and Sending

Super easy one-click loading and sending

One-click Reset

Automatically reset to original position

Production Line Control System

Remote controllable from LITONG paper cutter

Remote Service System

Internet based system service and update

Dynamic self-diagnosis function

Easy to track and diagnose system problem

Table Anti-pinch Safety System

Prevent injury from table movement

Chromed Steel Working Table

20mm Ultra-slim design with great strength

Automatic Micro-pore Air Cushion

Air cushion is formed only under materials

Integral Casting Frame

Great mechanical strength and stability

 Hydraulic Lifting System

Save up to 50% energy

Dual-linear Guide Lifting System

Great stability and maintenance free

Movable Control Desk

Multi-direction movable and easy for use

* Configuration or function is different from models

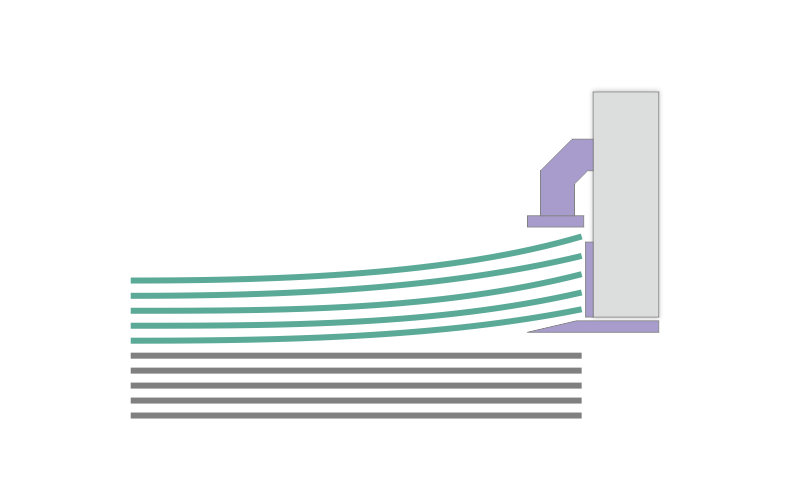

Bionic Paper Loading Technology

Revolutionary technology for paper loading

Mimic human hand loading process

Smart-Touch Operation System

Exclusive operation system designed for pile loader

One-click loading, sending and reset function

Multi-language operation system

Production Line Control

Ready for directly control from LITONG paper cutter

Simplify operation of cutting production line and greatly improve productivity

Remote Service

Internet based service system

System diagnose and software update

Advanced P2P communication technology

Plow-type Loading Table with Rolling Rods

Minimize friction between paper and table

Greatly reduce paper damage during loading process

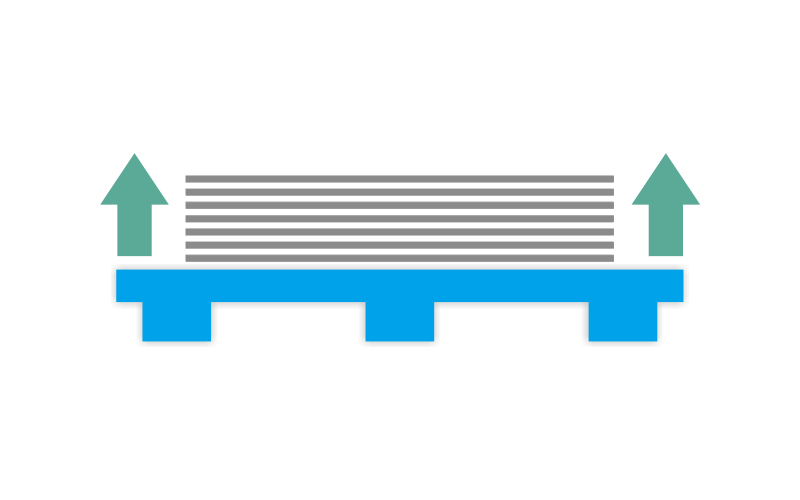

Ready for Last Stack Loading

With LITONG pallet or qualified pallet

System can detect the last stack and load automatically

Thin Paper Separation System*

Advanced multi-plates type thin paper loading system

Damage-free loading technology suitable for most of thin paper

*Only available on QZ-I Models

Chromed steel table

20mm slim chromed steel working table

Innovative embedded air chambers carved by CNC technology

Automatic Micro-pore Air Cushion

2mm diameter automatic micro-pore air injector

Air cushion is formed automatically under materials

Up to 25% energy saving and great performance

Hydraulic Lifting System

Hydraulic system only works in lifting period

Up to 50% energy saving compared to traditional pile loader

Integral Casting Body and Beam

Significantly improve mechanical strength

Eliminate system instability of traditional assembly structure

Dual Linear Guide Lifting System

Greatly improve system working stability

Ensuring long-term loading precision and maintenance free

Movable Control Desk

Vertical scaling for height adjustment

Horizontal rotation for manual operation and maintenance
